Total Control Products’ Mini-Tub g-Link Rear Suspension

For 1964-70 Mustangs

The Mini-Tub g-Link rear suspension from Total Control Products, a Chris Alston’s Chassisworks brand, is the quickest route to your modern pro-touring build with high horsepower and substantially larger tires and wheels.

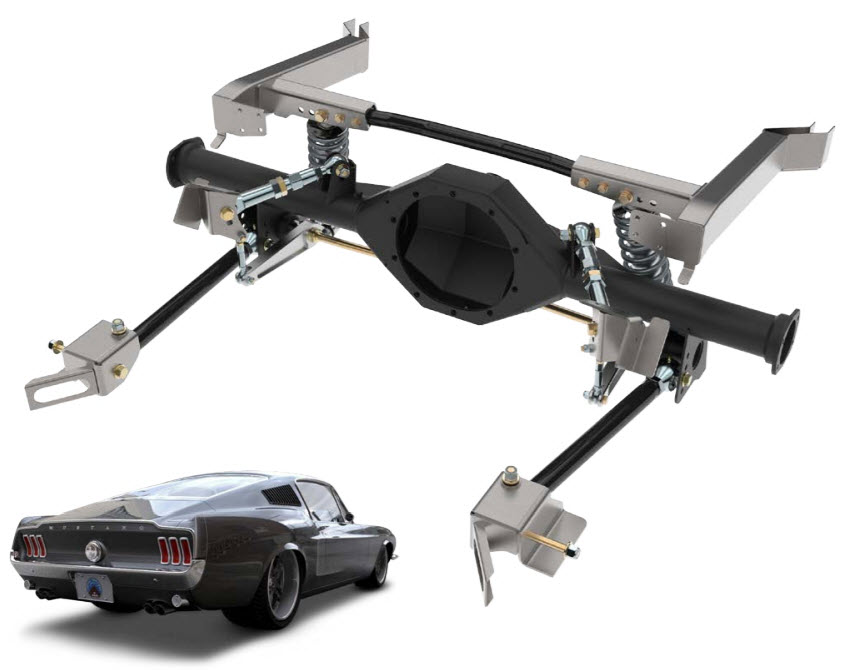

Total Control Products' Mini-Tub G-Link Rear Suspension

Evolving from their familiar line of canted 4-link suspensions, the Mini-Tub g-Link features relocated forward suspension mounts and optional offset frame rails to create an additional 2-3/4″ of tire clearance per side. Due to the increased levels of traction and torque possible with a mini-tubbed vehicle, the factory-welded FAB9 rear end housing is highly recommend. However, customers wishing to use their existing Ford 9″ rear end housing can choose to weld-on the control arm brackets using an optional fixture.

Total Control Products' Mini-Tub G-Link Rear Suspension

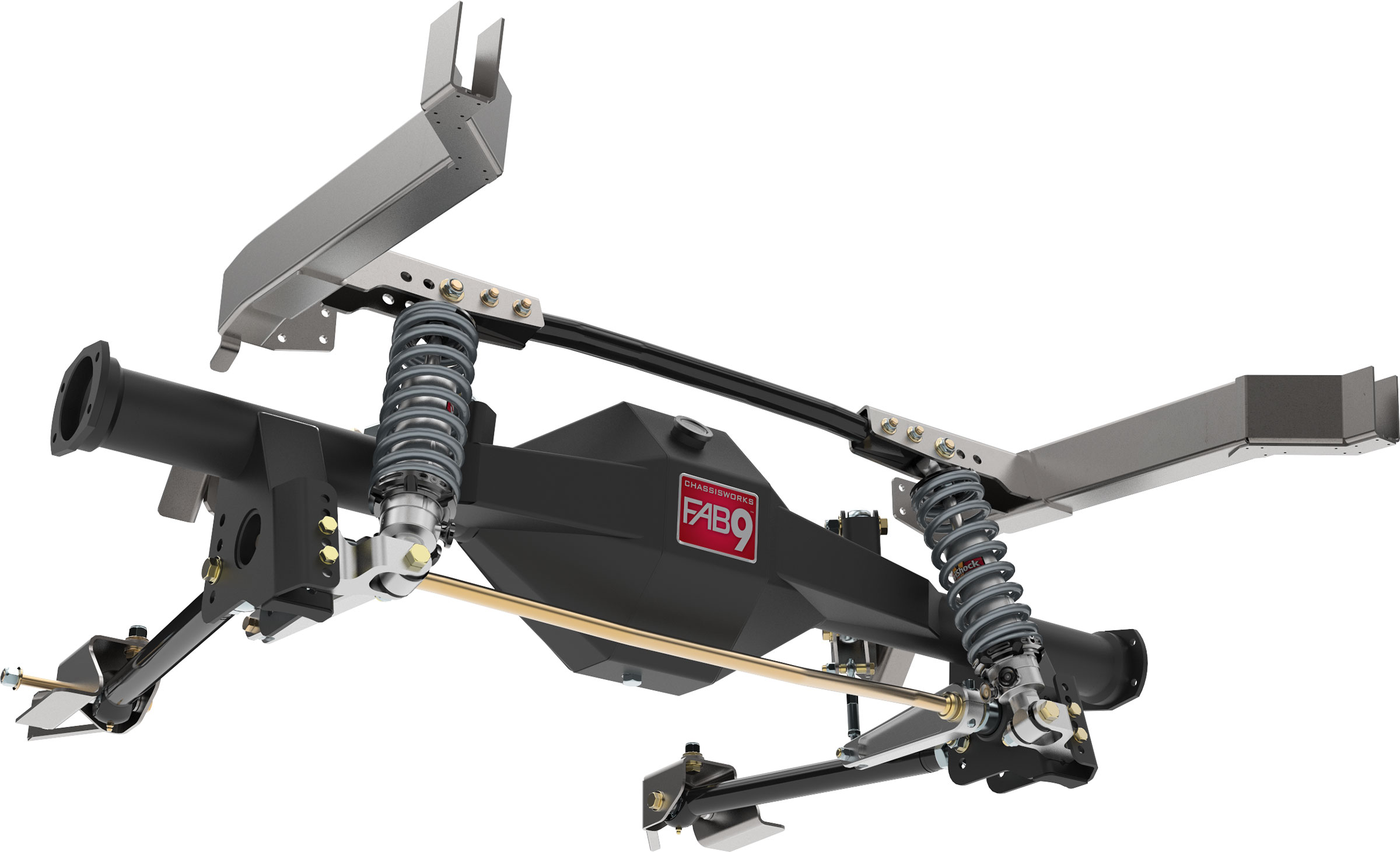

Mini-Tub g-Link with FAB9 Housing

Total Control Products' Mini-Tub G-Link Rear Suspension

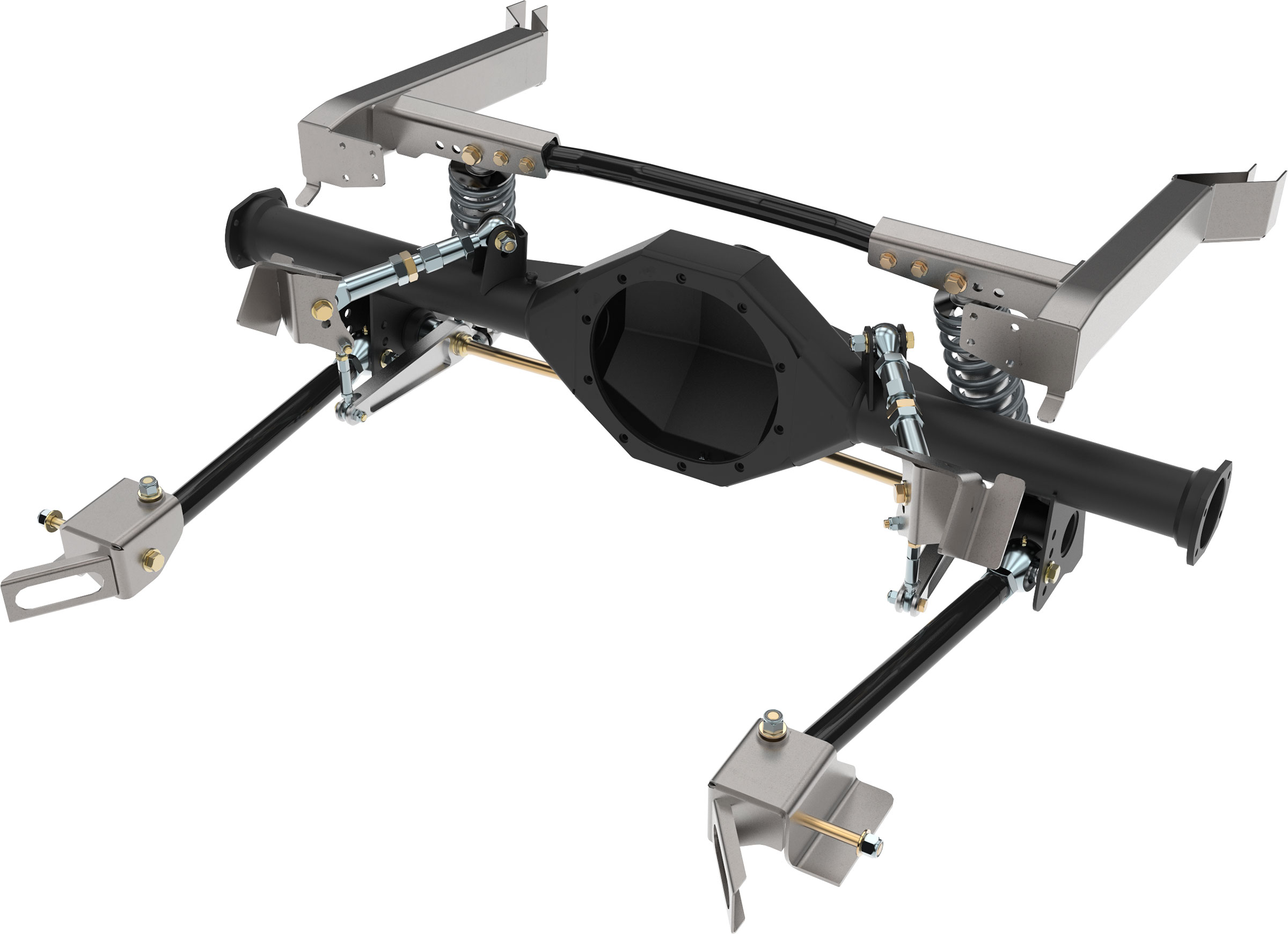

Mini-Tub g-Link with FAB9 Housing

Total Control Products' Mini-Tub G-Link Rear Suspension

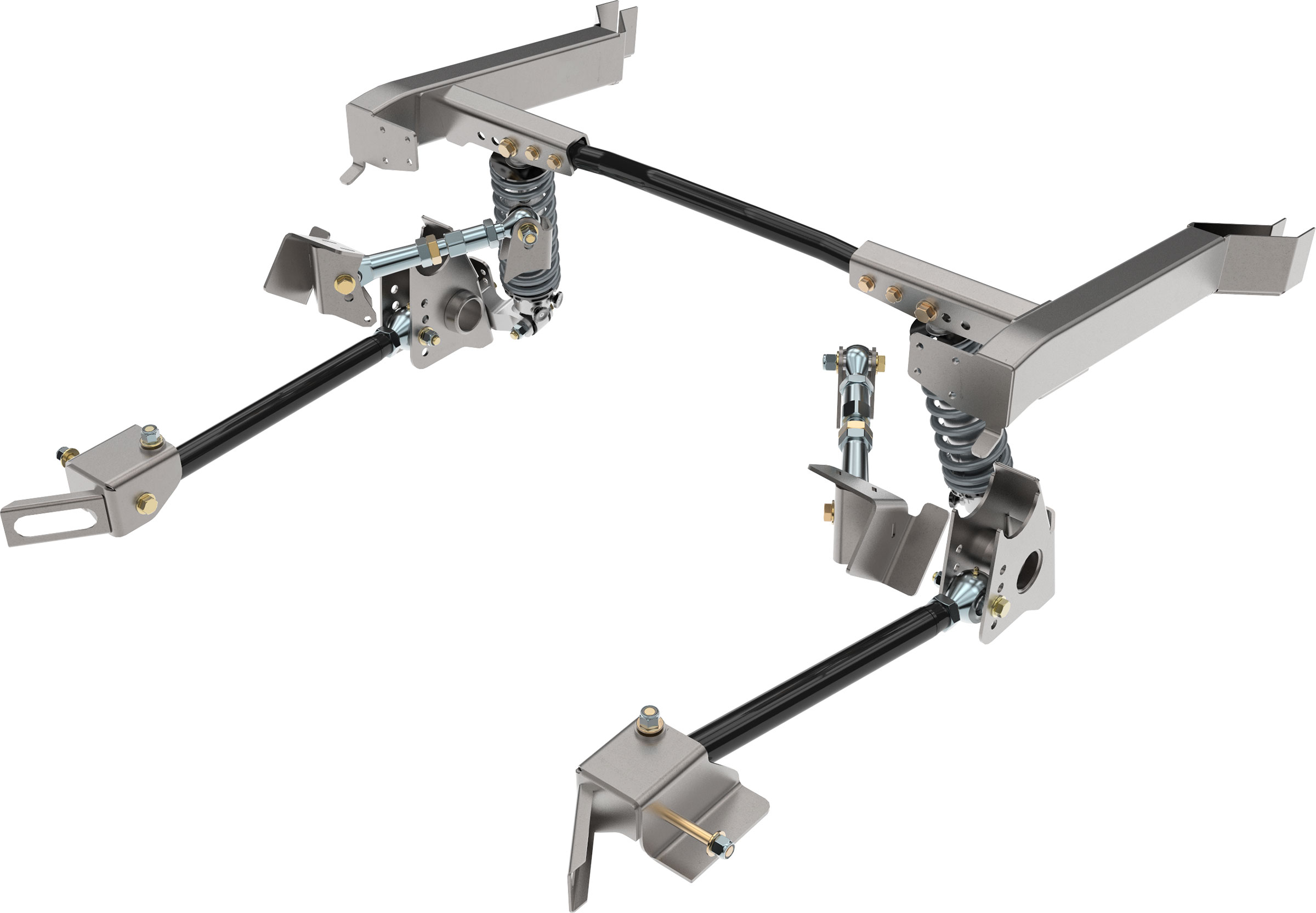

Mini-Tub g-Link with Weld-On Brackets

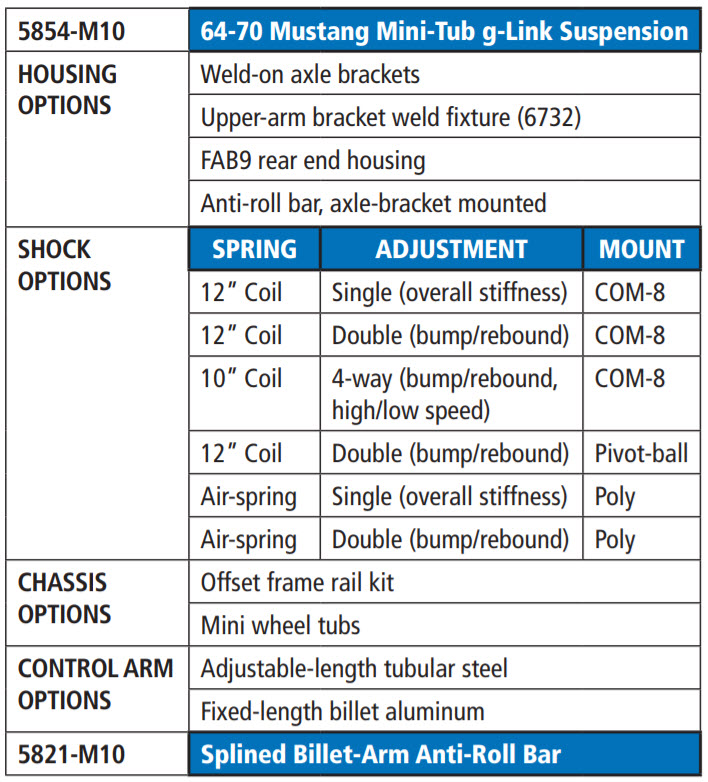

Billet-steel upper arms and your choice of tubular-steel or billet-aluminum lowers arms feature zero-deflection pivot-ball joints for reliable, precise control of suspension movement. Further suspension choices include splined-end anti-roll bar and VariShock single-, double- or 4-way adjustable coil-over or air-spring shocks to perfectly configure the system for your specific level of performance or stance. Currently applications include ’64-70 Mustangs.

Total Control Products' Mini-Tub G-Link Rear Suspension
